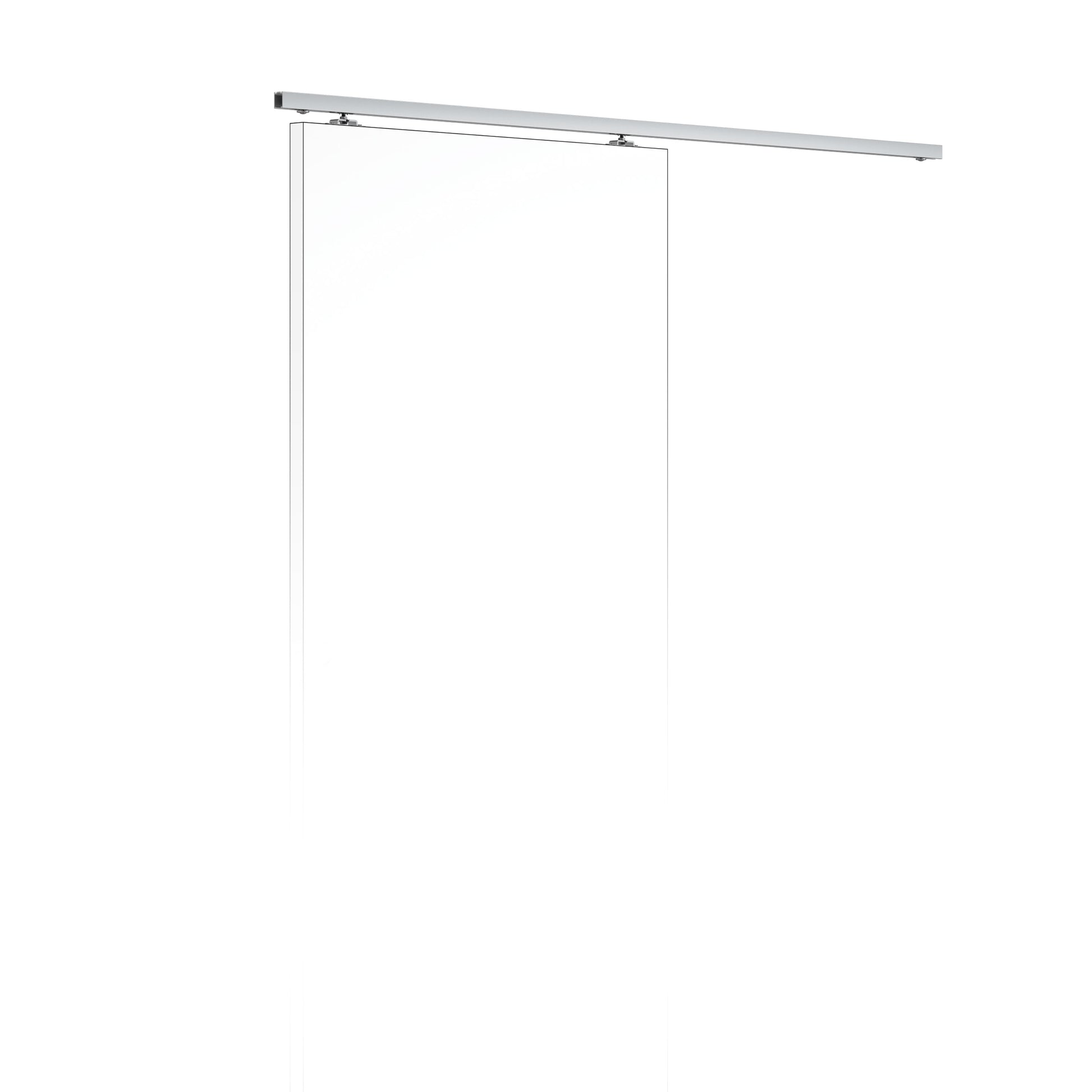

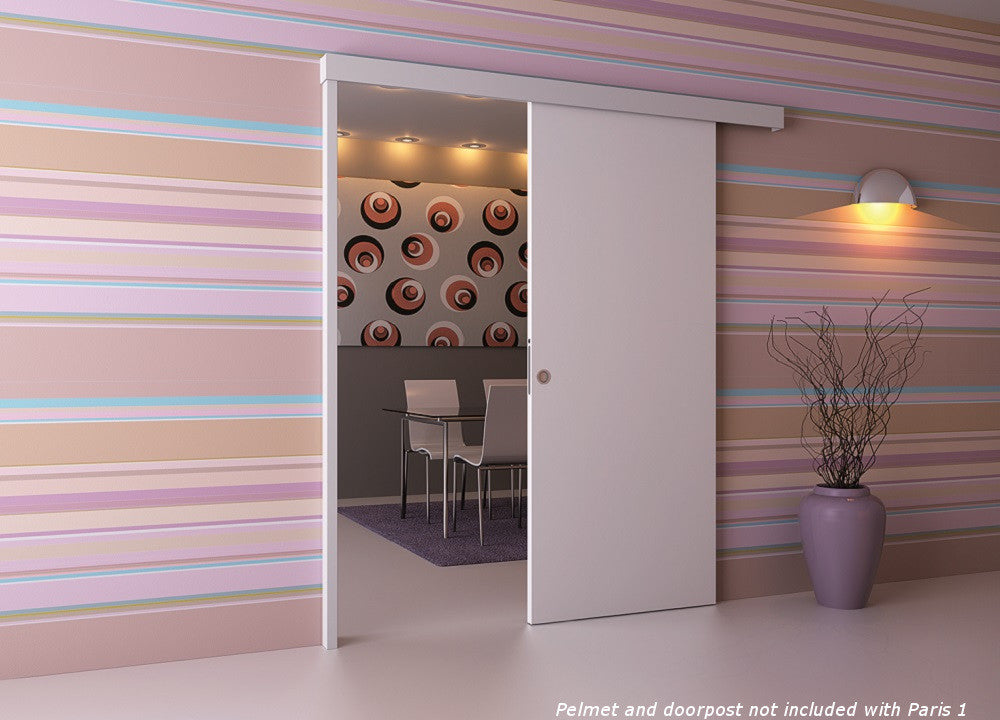

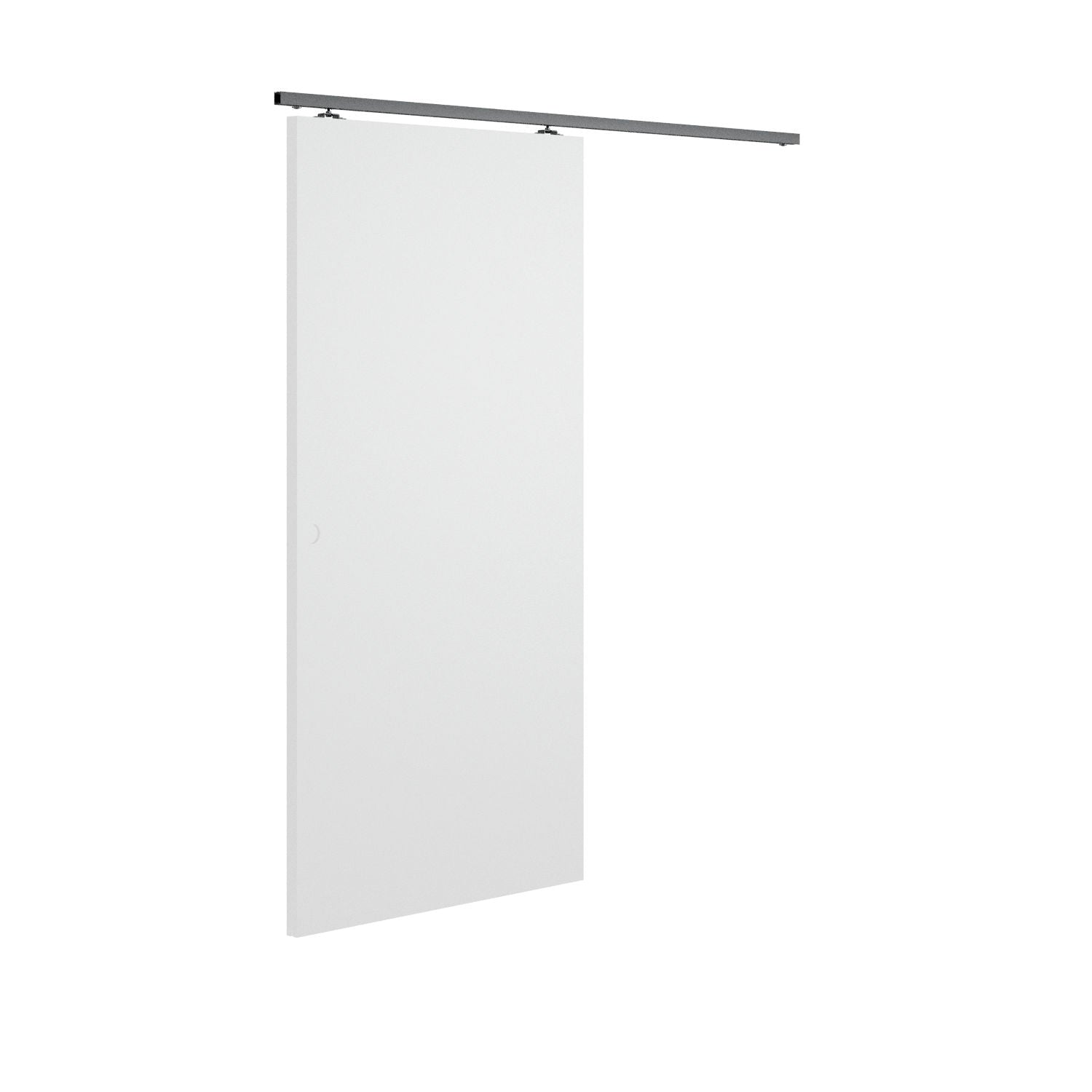

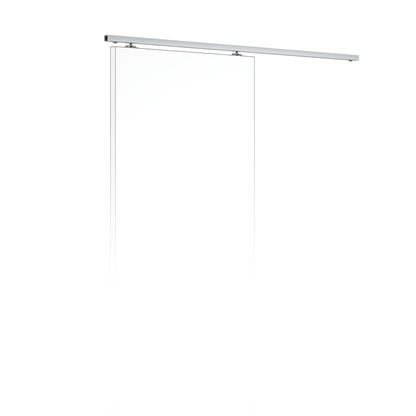

Eclisse Wall Mounted Sliding Door Kit -2m Track (Ref: Paris 1)

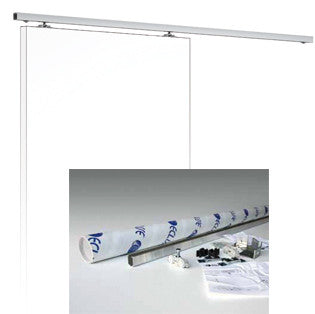

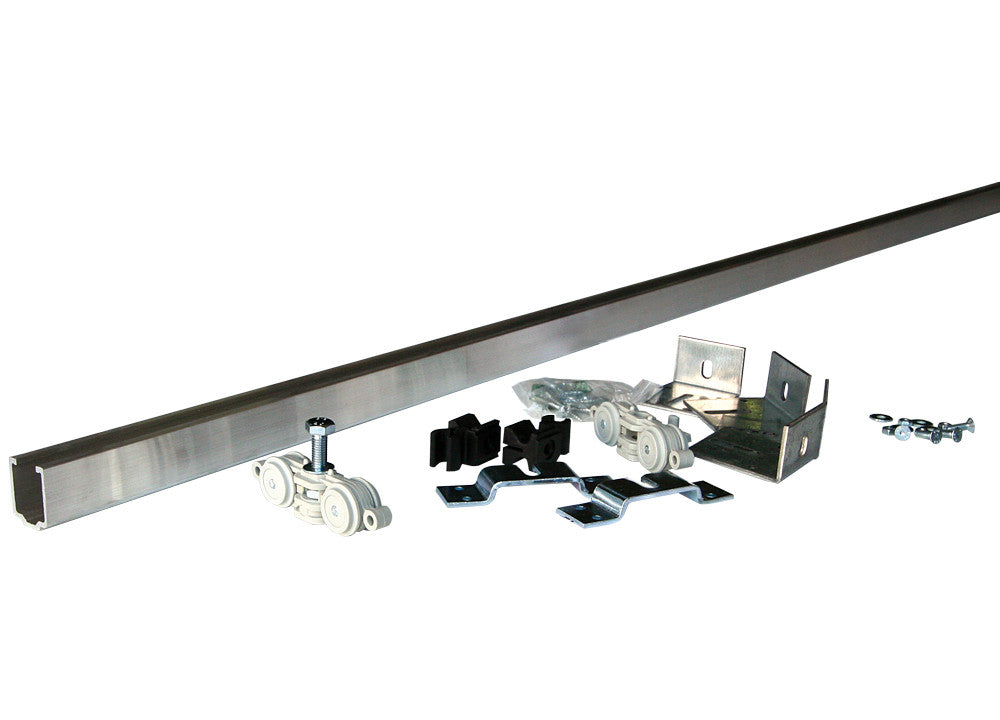

This sliding door gear kit includes a 2m track, runners, runner stops, wall brackets and door guide.
- Order online before 1pm on a weekday for a next working day delivery to UK mainland.
- For delivery to islands, Highlands, N Ireland and ROI please contact us.
- Includes 2m anodised aluminium track.
- Track can be cut to length.
- Top hung, no bottom track required.

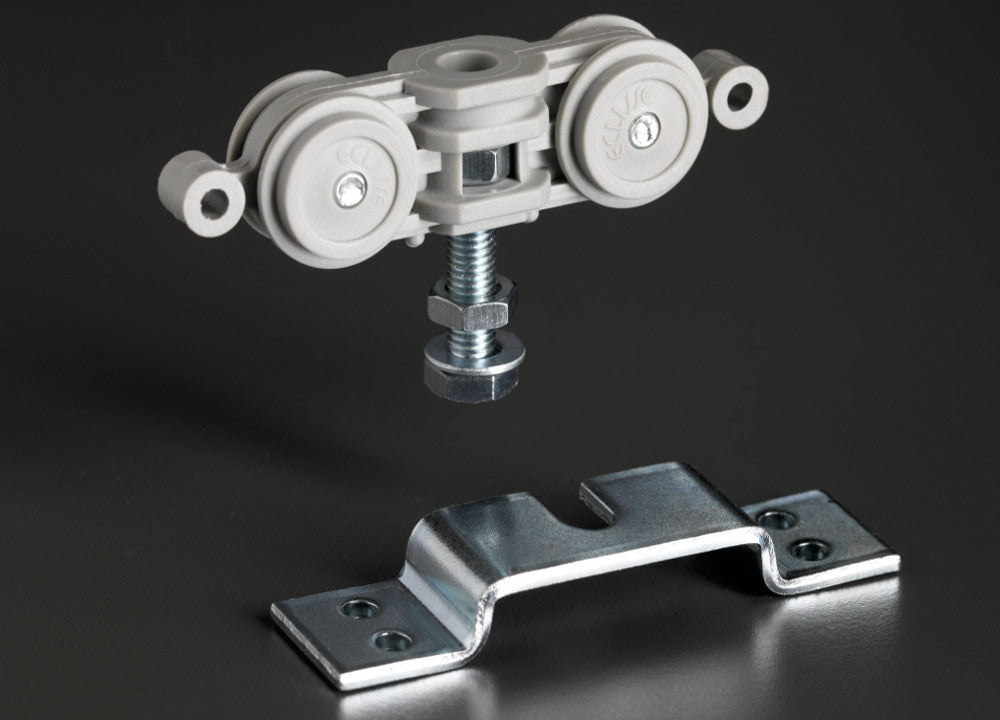

- The runners are tested to 100,000 cycles (that’s around 25 years of average use!)
- Door not supplied.
- TECHNICAL SPEC: Download
- Track length 2m.
- Max door weight 60 kg. Note this depends on the type of wall you are attaching it to. Normally a solid wall will support up to 60 kg but a stud wall may need to be reinforced if the stud is not in the appropriate positions for fixings.
- Position the floor guide just before the opening passage so you can continue the floor surface through the passage without interruption.
- INSTALLATION INSTRUCTIONS: Download | Door Installation
- NBS Spec: Download
- BIM Object: Download
