Syntesis Flush Acoustic Hinged Single Door

Syntesis Flush Acoustic Hinged Single Door

4.4

A single acoustic flush hinged door without jambs or architrave

The Acoustic Synthesis Flush Hinged Door combines clean, contemporary design with high acoustic performance, making it an ideal choice for spaces where privacy and noise control are essential. Its sleek flush finish provides a seamless architectural appearance without compromising on sound reduction or functionality.

Designed for demanding commercial and residential environments, it offers a practical, stylish solution for creating quieter, more comfortable spaces.

View full details

Syntesis Flush Acoustic Hinged Door System

The ECLISSE Syntesis Flush Acoustic Hinged Door System combines contemporary flush-wall aesthetics with enhanced acoustic performance, making it the ideal choice for homes, offices and commercial interiors where both design and sound reduction matter.

Designed without visible architraves or door jambs, the concealed aluminium frame creates a seamless, minimalist finish that allows the door to blend effortlessly into the surrounding wall or become a striking design feature.

Suitable for modern residential and commercial projects, the Syntesis Flush Acoustic Hinged Door System offers the perfect balance of style, privacy and performance.

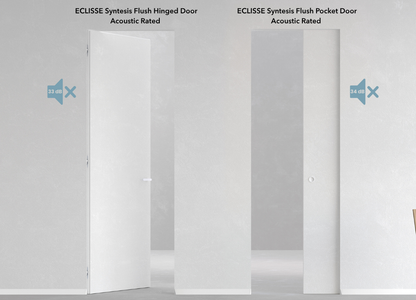

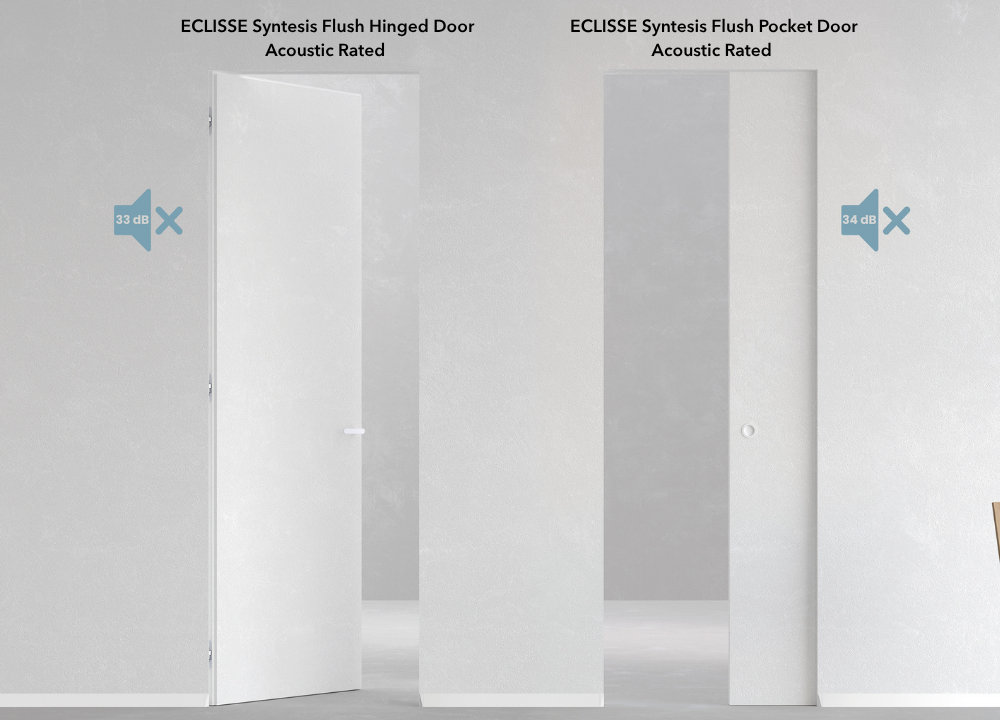

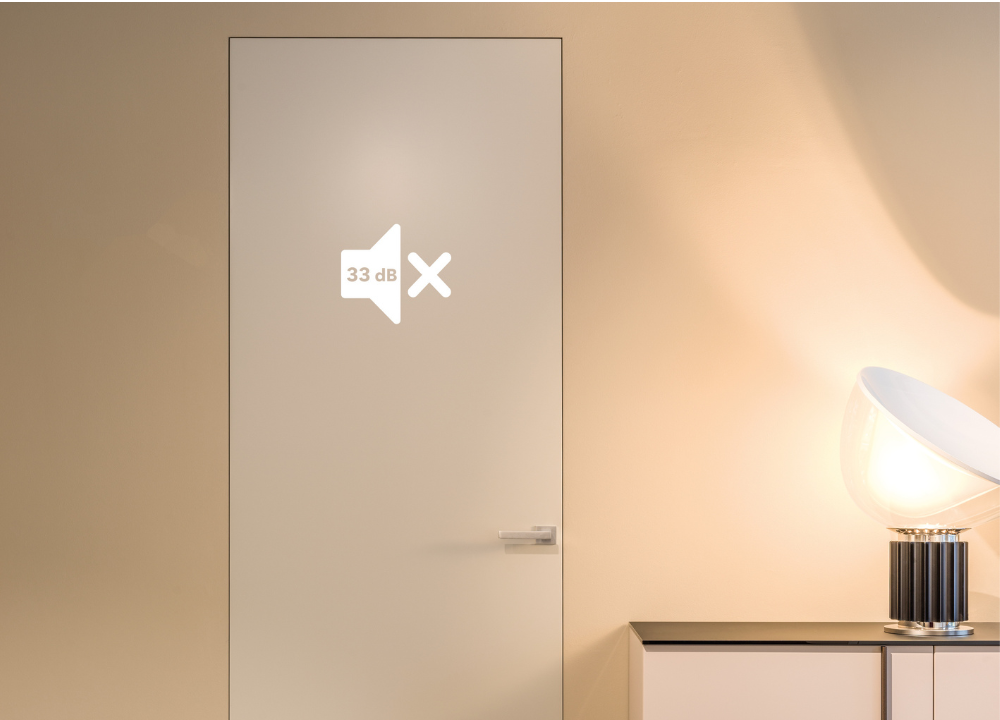

It allows a noise reduction of 33 dB and includes

  • a 45 mm thick soundproofing door panel (primed paint ready door or RAL 9010 white lacquered door). Door panel comes pre-milled for all the gaskets and door bottom with tension rod).

  • acoustic gaskets to be applied during installation;

  • Draught guard inserted in the lower rebate of the door panel.



Explore more

This product is part of the Eclisse Syntesis Flush Collection.

Delivery via special delivery pallet service or customer collection, please contact us for delivery details.

Acoustic Single Hinged system with door

  • Price on request
  • Lead-time for system with door is 10-12 weeks from placing an order.

Delivery via special delivery pallet service or customer collection, please contact us for delivery details.

  • Innovative edge profile that allows for a crisp plaster finish right up to the edge for a minimalist architrave free appearance.
  • The box cross sectional frame has been designed for strength and rigidity from 2kg/m aluminium and is designed to reduce flex and so maintain a crisp plaster finish without cracks.
  • The frame is protected against oxidisation and is then primed ready to paint.
  • Each standard system comes with 3 concealed hinges that are adjustable in 3 axes.
  • Supplied with a 45mm door panel, weatherstrip, acoustic gaskets & hardware kit.
  • 15 year guarantee on ECLISSE frame. 3 year guarantee on ECLISSE primed doors
  • Supplied with a 45mm acoustic rated primed paint ready door (primed paint ready door or RAL 9010 white lacquered door)
  • To achieve acoustic rating it has to be used with door and applicable locks supplied by ECLISSE.
  • Only available with header.
  • Available push left, right, pull left right. In the push version, the actual passage width is reduced by the thickness of the door panel.
  • Not compatible with door closure and self-closing hinge.
  • Not available with pull lever handles and door pull handles.
  • Hardware kit includes specific acoustic gasket.
  • Door furniture for this product is not supplied - handle with 8mm spindle can be used

To order please call 0333 5770828.

Lead time - 10-12 Weeks

  • TECHNICAL INFO: Download
  • Suitable for 45mm thick doors.
  • Install at finished floor level.
  • INSTALLATION INSTRUCTIONS: Frame Push | Frame Pull | Download
  • Certification: Download
  • CAD drawing (.dwg): - download
  • NBS Spec: - Download
  • BIM: - Download
