• Eclisse Syntesis® Flush Hinged Double *Images are for Illustrative Purposes Only*
  • Eclisse Syntesis® Flush Hinged Double *Images are for Illustrative Purposes Only*
  • Eclisse Syntesis® Flush Hinged Double *Images are for Illustrative Purposes Only*
  • Door configuration for Eclisse Syntesis® Flush Hinged Double
  • Concealed hinges that are adjustable in 3 axes
1 5

Eclisse

Syntesis® Flush Hinged Double

Syntesis® Flush Hinged Double

FROM: £978.06 GBP (Excl. VAT)
FROM: £1,141.07 GBP (Incl. VAT)
FROM: £978.06 GBP
Sale Sold out

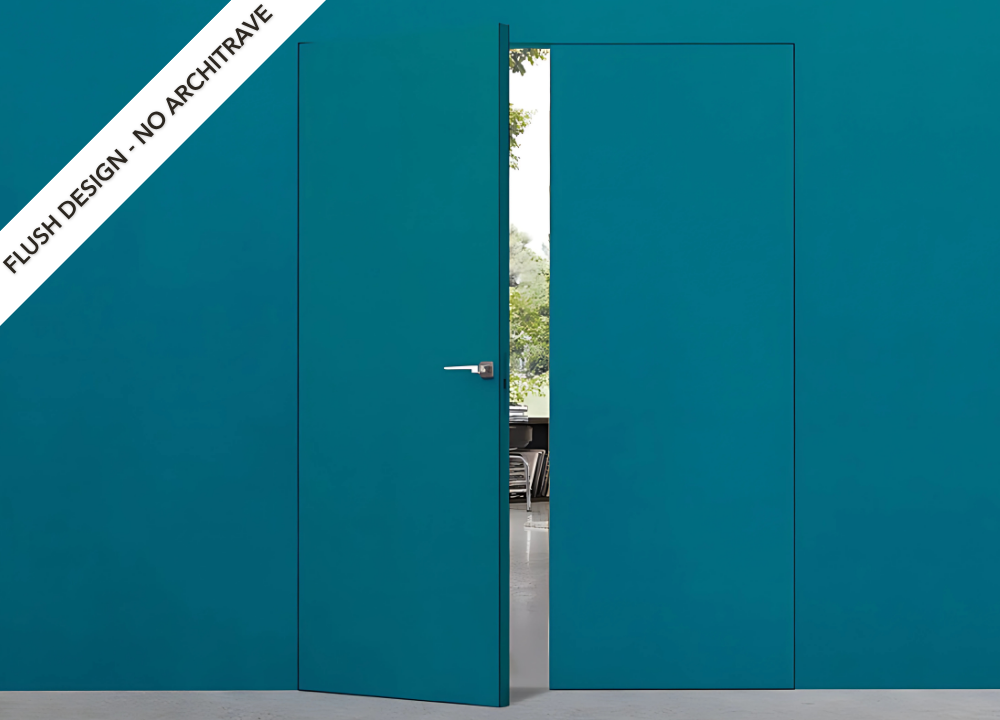

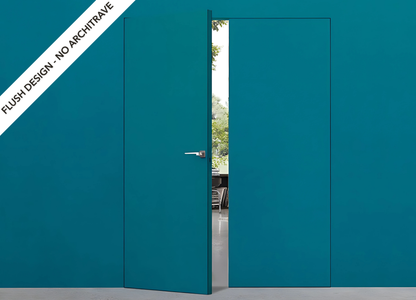

A double flush hinged door without jambs or architrave

To order please call 0333 5770828.

Lead time for System only - 4-6 weeks

Lead time for System and Door - 6-9 Weeks
View full details

Please select your accessories and handles

Syntesis® Flush Hinged is an Eclisse concealed door frame system without the need for jambs or architrave. The Syntesis® Flush Hinged frame has an innovative profile that allows for a crisp plaster finish right up to the edge. The double version comes supplied with our ready to paint primed doors for the perfect minimalist interior.

Make a feature of your flush doors or paint the doors the same colour as the walls so they blend into the background, the choice is yours. There are so many possibilities. Get creative and enjoy the freedom that concealed frame doors give to your design.

Included with the system is a magnetic latch. The latch remains flush with the door panel when the door is open and is attracted to the magnetic striker when closing, without pressing the handle for effortless and quiet closing.

This product is part of the Eclisse Syntesis® Flush Collection.

Need more information? Just give us a call on 0333 5770828.



  • Double system with door
  • Prices from £978.06 +VAT with door. View price list .pdf
  • Lead-time for system with door is 6-9 weeks from placing an order.

WHAT'S INCLUDED IN THIS KIT:

  • Strong Aluminium Frame
    2 kg/m box cross sectional aluminium frame designed to reduce flex and so maintain a crisp plaster finish without cracks. Primed and ready to paint.
  • Hinges
    3 concealed hinges with hinge cover plates and strike plate. Adjustable in 3 axes.
  • Magnetic Latch
    The latch remains flush with door panel when the door is open and is attracted to the magnetic striker when closing, without pressing the handle.
  • Ceiling and floor bolts
    Supplied with ceiling and floor bolts as standard for the fixed door. If not required please specify at time of ordering.
  • Door Seal
    911 Schlegal Aquamac door seal, to be cut to length.

OPTIONAL ACCESSORIES: Door closer- Completely invisible. 4 variations available i.e. left or right and also with or without hold open function;Flush Skirting Board Adaptor- for flush skirting

GUARANTEE: 15 year guarantee on ECLISSE frame. 3 year guarantee on ECLISSE primed doors

  • DOOR PANEL WEIGHT: Doors over 50Kg require 4 hinges.
  • BESPOKE SIZING AVAILABLE?: Yes- up to 2000mm x 2700mm passage size.
  • SUPPORTING WALL CONSTRUCTION: Can be used with standard metal or timber stud walls or with masonry
  • SYSTEM TYPE: For use with timber doors.
  • DOOR SUPPLIED?: Yes

DOWNLOADS
