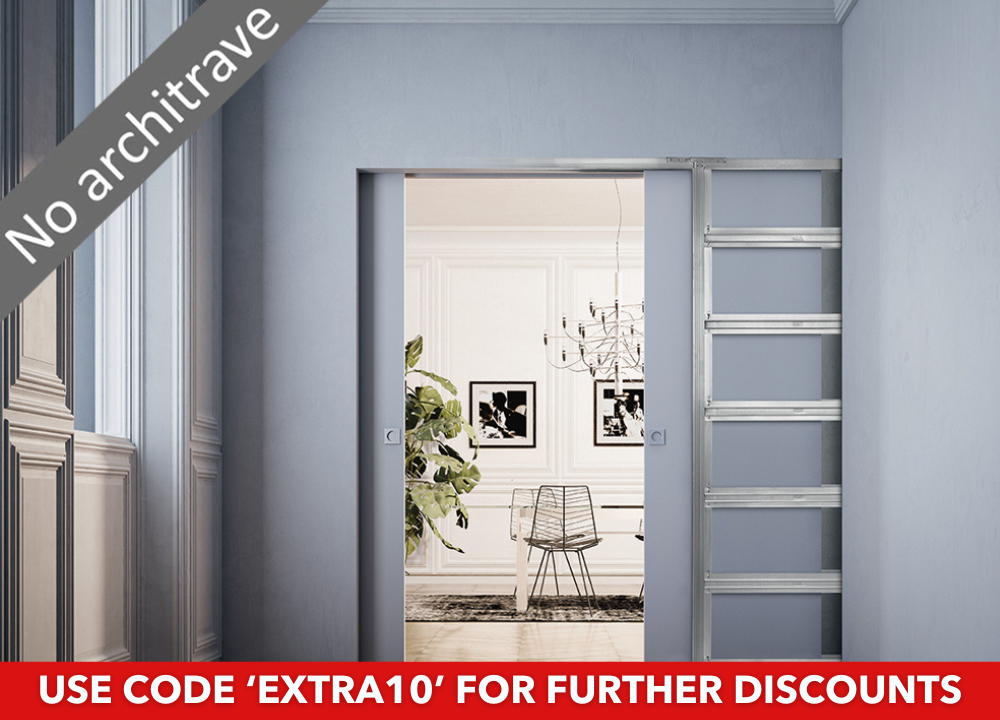

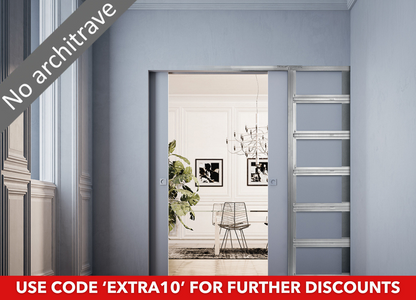

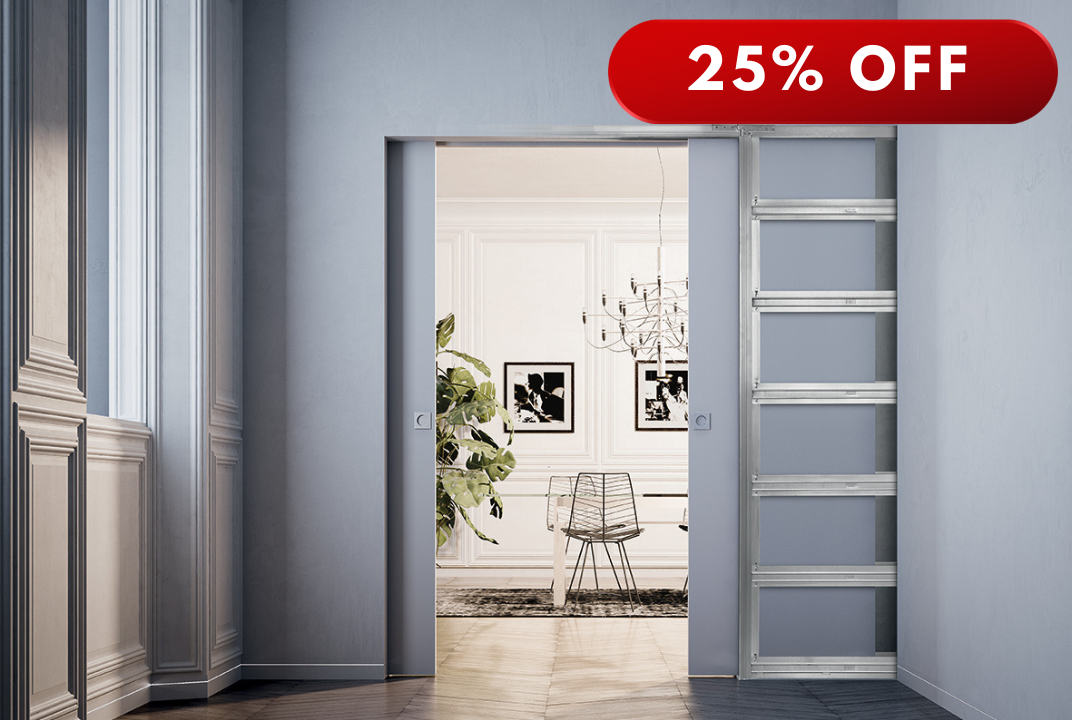

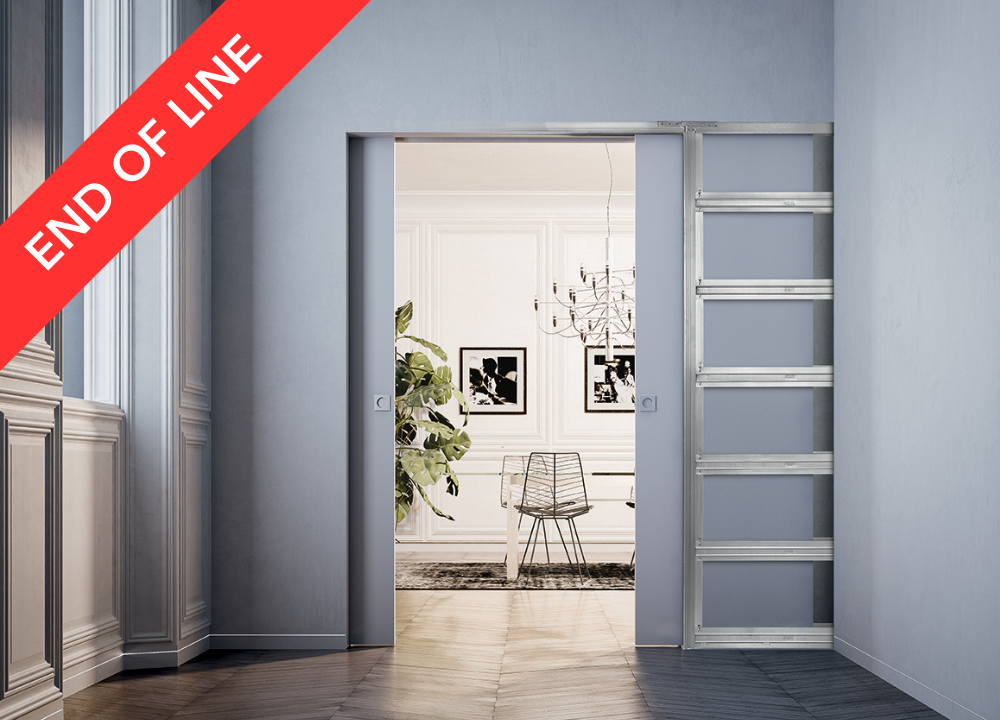

Space-saving and discrete, the double Syntesis® Flush Pocket Door system gives you more options. More layout options and more design options.
Note: This product page is for the 100mm finished wall thickness system ONLY
Finished wall thickness: 100mm
Original Price: - Starting at £790+VAT
Sale Price: 25% discount
Note: This is an end of line product. Our couriers take every care possible when delivering. However, in the unlikely event this item is damaged in transit we would not be able to replace it and would give you a full refund.
- Standard Delivery 1 - 3 Working Days - £5.99
- Order before 1pm on a weekend for next day delivery (Eligible Postcodes Only) - £9.99
- Dedicated Day Delivery (Eligible Postcodes Only) - £19.99
For deliveries to highlands, Islands and Northern Ireland please call 0333 5770828
WHAT'S INCLUDED IN THIS KIT:
- Galvanised steel frame
Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of full pocket, track and doorpost. The Syntesis® Flush range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger aluminium profiles and reinforced joints to reduce the risk of plaster cracking to a very minimum. - Runners
Runners are tested to 100,000 cycles (that’s around 25 years of average use!) - Extractable Track
Track can be extracted without having to break into the wall. (See Tech Tips section in Technical tab for instructions). - Front and rear door stop
Can be adjusted to determine how far the door protrudes from the pocket. - Metal anti-warp door profile
Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly. - Self centering door guide
Clicks into frame, doesn't screw into the floor, so it is perfectly centred every time. - FixingsEven the screws to attach the plasterboard to the frame are included.
OPTIONAL ACCESSORIES: BIAS® soft-close with anti-slam,BIAS® DS Bi-directional soft-close with anti-slam,Flush Skirting
GUARANTEE: 15 year guarantee on the complete Eclisse steel pocket system and runners.
NOTE:
- When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.
- Important: Install at finished floor level.
- TECHNICAL SPEC: Download
- DOOR PANEL WEIGHT: 100kg
- BESPOKE SIZING AVAILABLE?: N/A
- DOOR THICKNESS: 35 - 44mm
- FINISHED WALL THICKNESS: 100mm
- SYSTEM TYPE: For use with timber doors - NB.The brackets for the Syntesis Flush system require you to route a 20mm deep channel in the top of the door for the special brackets. These are then screwed into place so this requires approx. 60mm depth in total. Please ensure the top rail of the door is the correct depth or that the door core is suitable to fix into.
- DOOR SUPPLIED?: No- you can use a standard UK or ROI door panel size (seeTechnical Spec)
- NOTE: When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.
DOWNLOADS
- SIZING CHART & TECHNICAL SPEC: Download
- INSTRUCTIONS: 100mm finished wall thickness
- CAD DRAWING (.dwg):
- NBS SPEC:-
- BIM:-
TECH TIPS:
1) Video on how to extract the track. View (NB. To access the track you will need to follow the instructions above on how remove the door first. You may also need to adjust the door stop to access one of the screws).
