The new and improved system provides even greater ease of installation with the addition of new Eclisse features to further increase stability and provide a professional finish:
A perfect solution for bathrooms, en-suites, utility rooms, walk in wardrobes, in fact, anywhere in a property where you wish to better use space that would otherwise be taken up by the swing of a hinged door.
The Syntesis® Flush Pocket Door system provides you with a door that is there when you need it, and that is capable of blending, almost disappearing into its surroundings. When you open it, it disappears into a pocket in the wall. The perfect disappearing act!
Space-saving and discrete, the single Syntesis® Flush Pocket Door system gives you more options. More layout options and more design options.
Note: This product page is for the 100mm finished wall thickness system and for the most popular sizes of finished wall thickness 125mm. These sizes will be supplied from stock.
If you need a made to order size with finished wall thickness 125mm or 150mm please call us on 0333 5770828. The lead time on 125 and 150mm made-to-order finished wall thickness versions is 4-5 weeks.
|WHAT'S INCLUDED IN THIS KIT:|

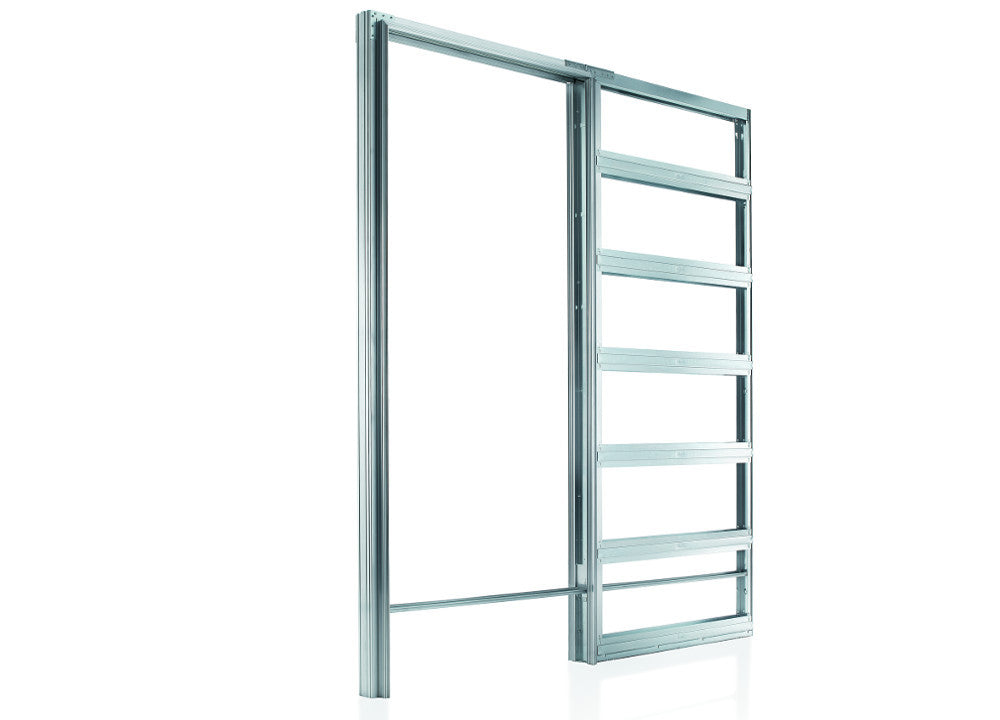

|Galvanised steel frame||Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of full pocket, track and doorpost. The Syntesis® Flush range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger aluminium profiles and reinforced joints to reduce the risk of plaster cracking to a very minimum.|
|Runners||Runners are tested to 100,000 cycles (that’s around 25 years of average use!)|
|Extractable Track||Track can be extracted without having to break into the wall. (See Tech Tips section in Technical tab for instructions).|
|Front and rear door stop||Can be adjusted to determine how far the door protrudes from the pocket.|
|Metal anti-warp door profile||Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly.|
|Self centering door guide||Clicks into frame, doesn't screw into the floor, so it is perfectly centred every time.|
|Fixings||Even the screws to attach the plasterboard to the frame are included.|
|Parts List with Images||View|

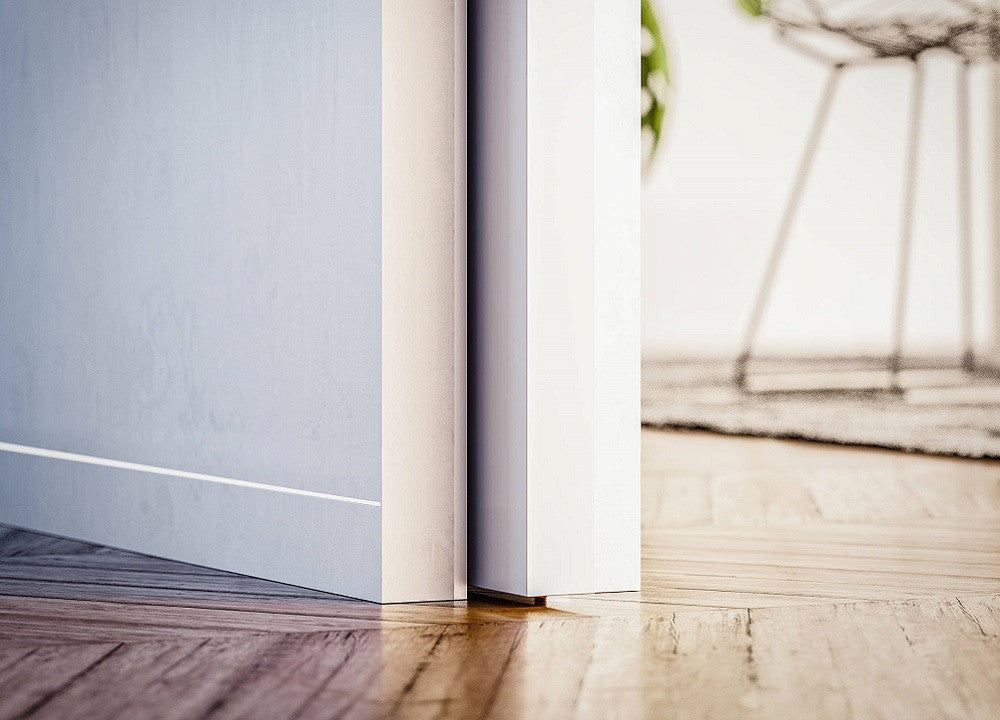

|BIAS® soft-close with anti-slam, BIAS® DS Bi-directional soft-close with anti-slam, Flush Skirting|
|15 year guarantee on the complete Eclisse steel pocket system and runners.|
|DOOR PANEL WEIGHT:||100kg|
|BESPOKE SIZING AVAILABLE?:||Yes- The Syntesis® Flush Pocket Door Single is available in non-standard sizes up to a 1300mm x 2700mm passage size.|
|DOOR THICKNESS:||35 - 44mm|
|FINISHED WALL THICKNESS:||100 or 125mm or 150mm|
|SYSTEM TYPE:||For use with timber doors - NB.The brackets for the Syntesis Flush system require you to route a 20mm deep channel in the top of the door for the special brackets. These are then screwed into place so this requires approx. 60mm depth in total. Please ensure the top rail of the door is the correct depth or that the door core is suitable to fix into.|
|DOOR SUPPLIED?:||No- you can use a standard UK or ROI door panel size (see Technical Spec)|
|SIZING CHART & TECHNICAL SPEC:||Download|
|INSTRUCTIONS:||100mm finished wall thickness | 125mm & 150mm Finished Wall Thickness 125mm | Door Installation
|CAD DRAWING (.dwg):||100mm FWT | 125mm FWT | 150mm FTW|
|1) Video on how to extract the track. View (NB. To access the track you will need to follow the instructions above on how remove the door first. You may also need to adjust the door stop to access one of the screws).|
