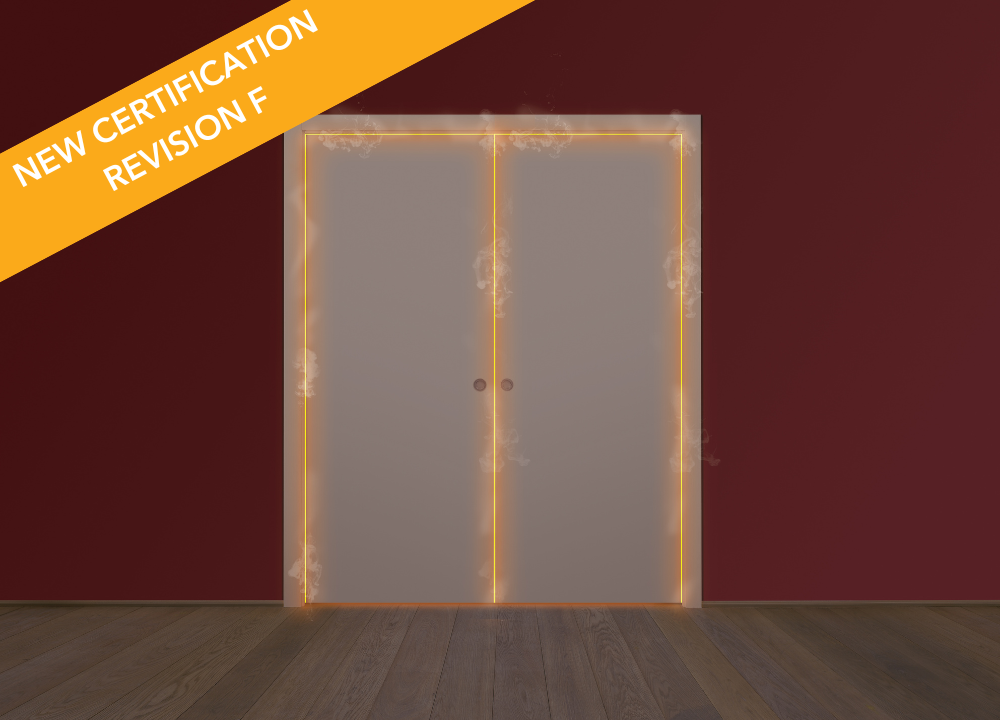

Classic DOUBLE FIRE-RATED Pocket Door System (Rev F)

FROM: £872.00 GBP (Excl. VAT)
FROM: £1,017.33 GBP (Incl. VAT)

FROM: £872.00 GBP

Sale Sold out

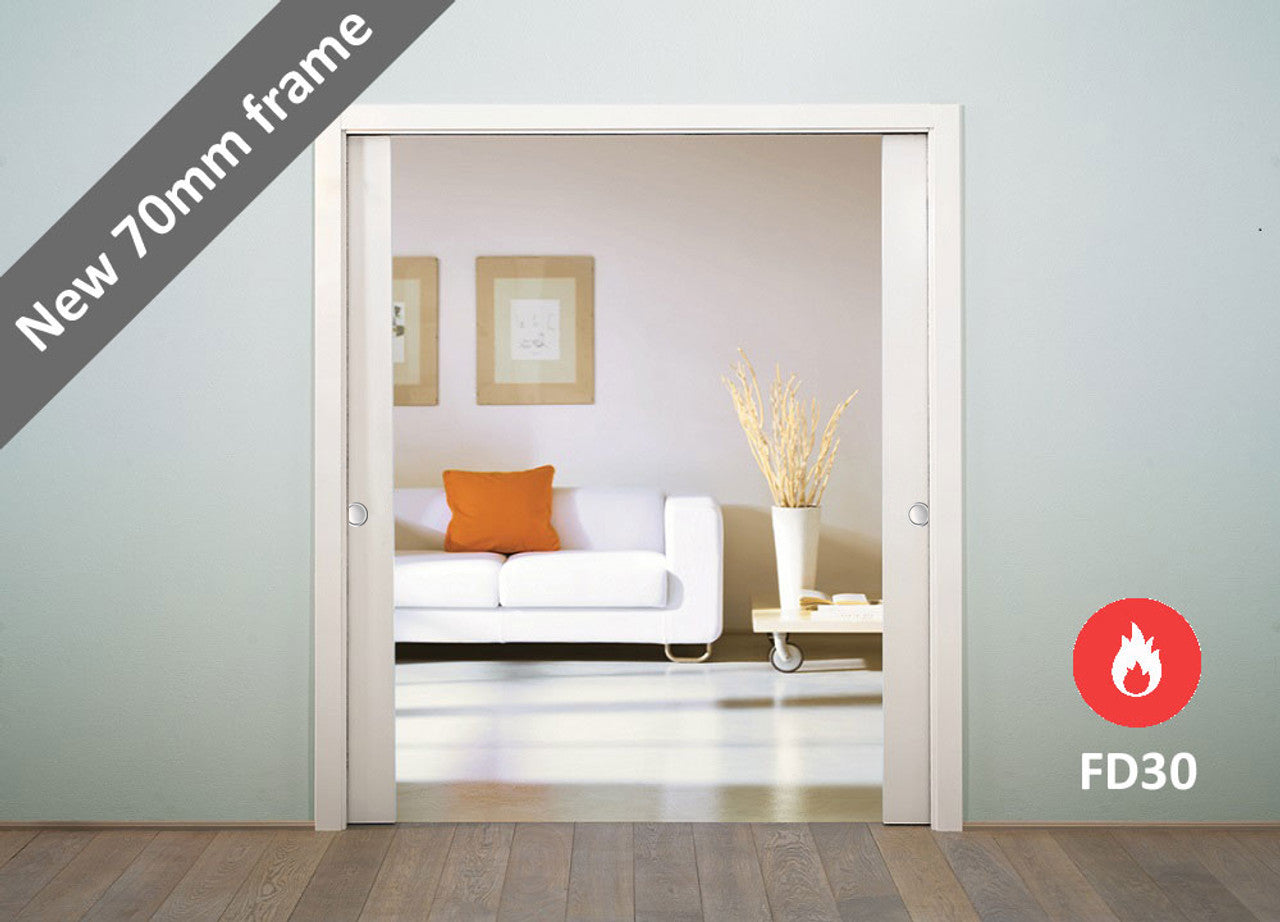

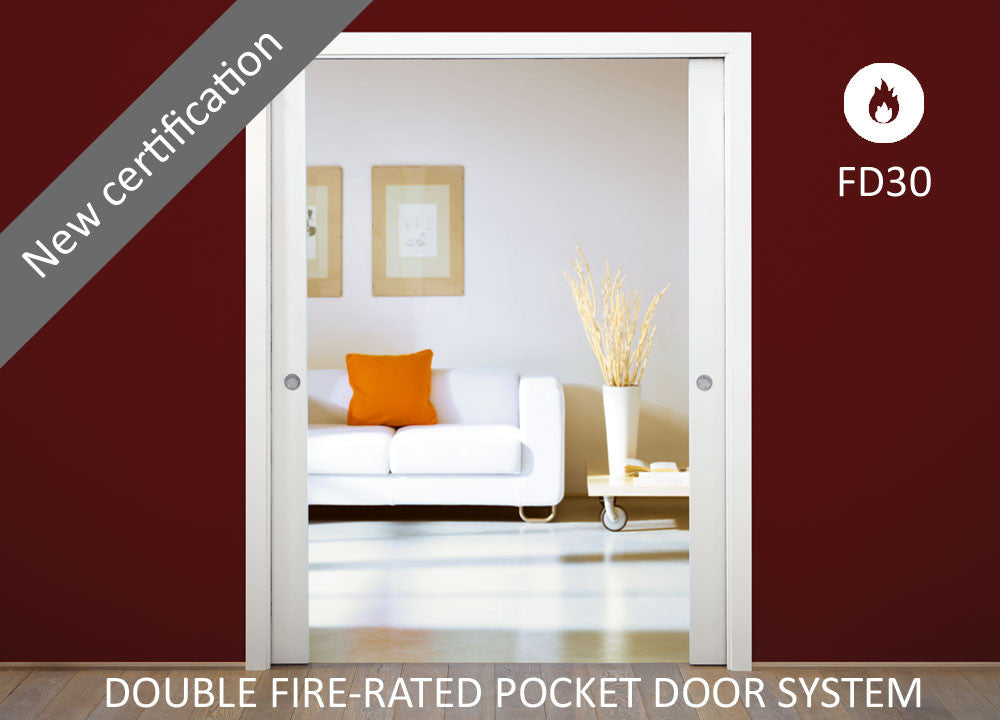

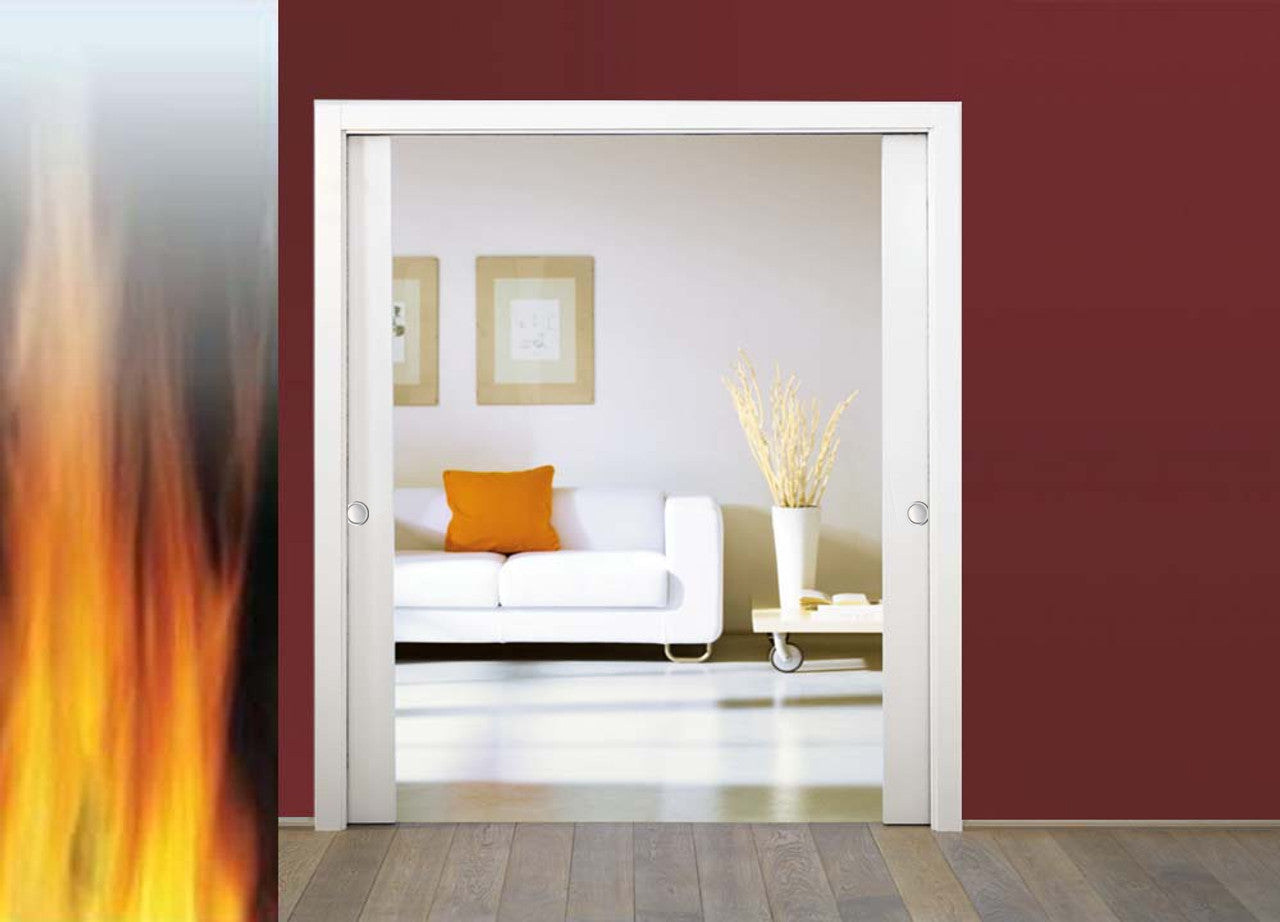

The independently fire-tested and certified ECLISSE Pocket Door System - Fire-Rated Double (FD30).

Quantity

The ECLISSE Classic Double Fire-rated Pocket Door System uses our high quality, comprehensively tested pocket door frame with specially designed high density fire-resisting jambs and architrave.

Price: £872.00 + VAT
Certified for use with the following 44mm FD30 door panels (not supplied) under field of application report PAR /10057/01 Revision F

JELD-WEN: See approved range - Midland Building Products, Travis Perkins, B&Q, Magnet, Howdens and many online door suppliers
XL JOINERY: See approved range - available from many online door suppliers
Vicaima - See approved range
Vibrant Doors - See approved range
Emerald Doors - Bespoke FD30 Door Leaves - please refer to 3.5.6 of Field of Application Report PAR /10057/01 Revision F

Compatible and certified for use with the BIAS Soft-Close Anti-Slam and Self Closer
This system comes supplied with all the necessary intumescent strips required for installation.
Door Furniture: Please see above links for compatible and approved door furniture.

Note: The frame is 70mm and requires two layers of 12.5mm Type F plasterboard either side to give a finished wall thickness of 120mm.

Refer to the report below for information on which non-essential hardware (i.e. push plates, kick plates, surface mounted pull handles, handles) has been approved for use.

Download IFC- Field of Application Report/Fire Certificate - Revision F

Need more information? Just give us a call on 0333 5770828.

Order online before 1pm on a weekday for a next working day delivery for UK mainland.
FREE delivery to UK mainland for this frame and jamb and any accessories or door furniture that is included in the same order. For delivery to islands, Highlands, N Ireland and ROI please contact us.

Standard Delivery 1 - 3 Working Days - £5.99
Order before 1pm on a weekend for next day delivery (Eligible Postcodes Only) - £9.99
Dedicated Day Delivery (Eligible Postcodes Only) - £19.99

For deliveries to highlands, Islands and Northern Ireland please call 0333 5770828

Compatible Accessories

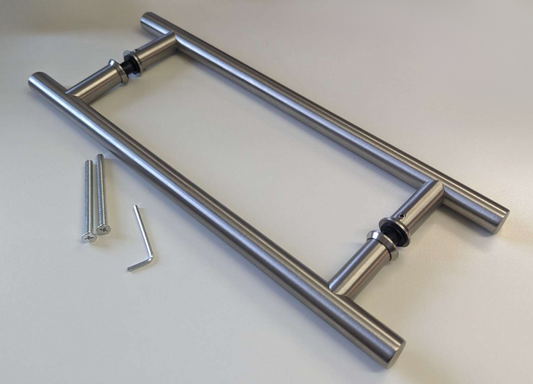

Compatible Handles

WHAT'S INCLUDED IN THIS KIT:

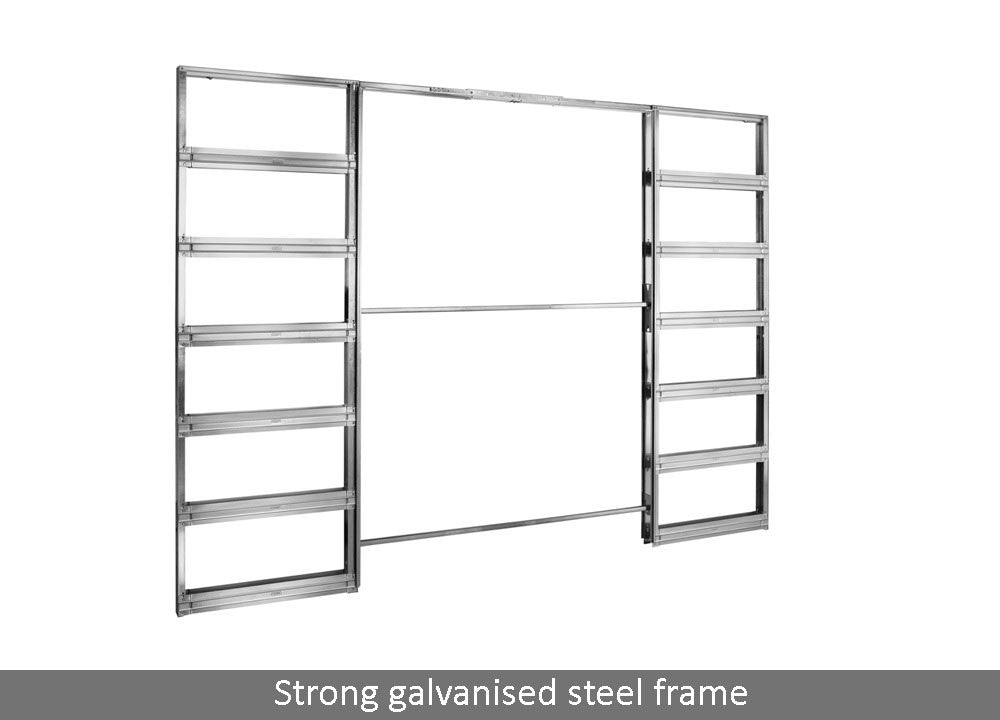

Galvanised steel frame
Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of full pocket, track and doorpost.

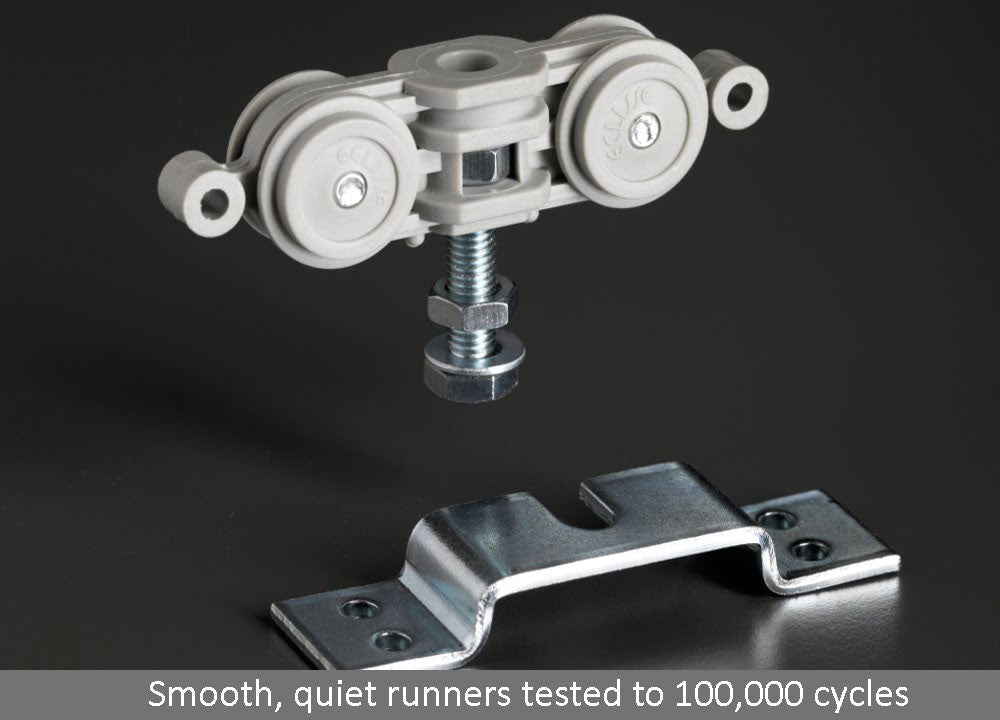

Runners
Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
Extractable Track
Track can be extracted without having to break into the wall.
Front and rear door stop
Can be adjusted to determine how far the door protrudes from the pocket.
Metal anti-warp door profile
Slots into a channel in underside of door. Not visible but ensures that if your door warps it continues to slide smoothly.
Self centering door guide
Clicks into frame, doesn't screw into the floor, so it is perfectly centred every time.
Fixings
Even the screws to attach the plasterboard to the frame are included.

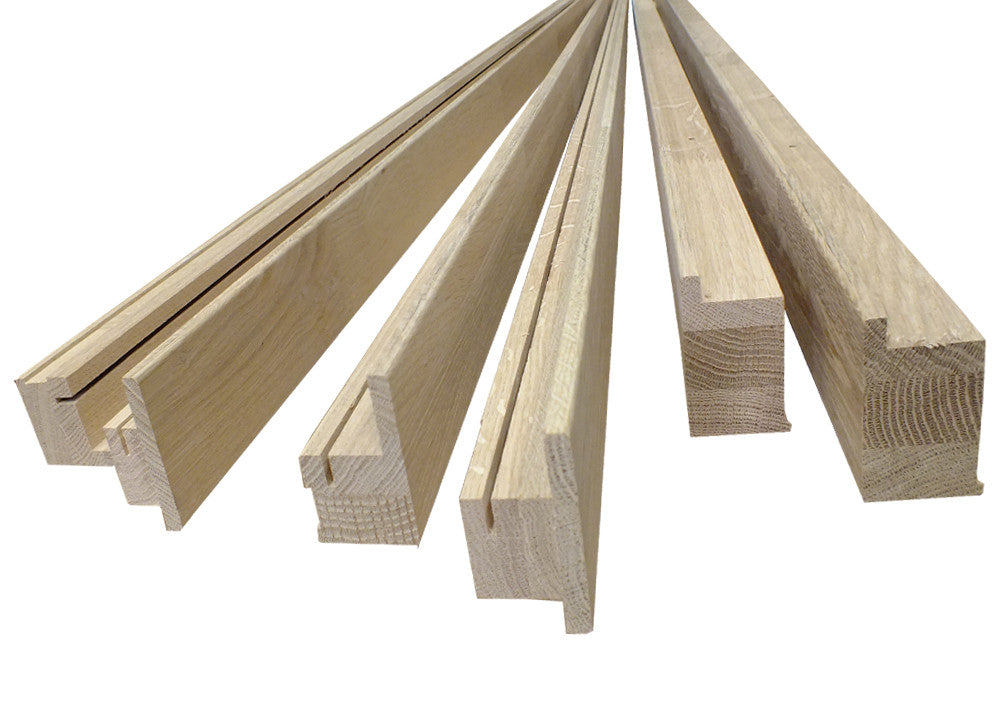

Jamb kit
The jambs with integrated architrave are manufactured from high density finger jointed oak. The wood is unfinished and paint/stain ready.

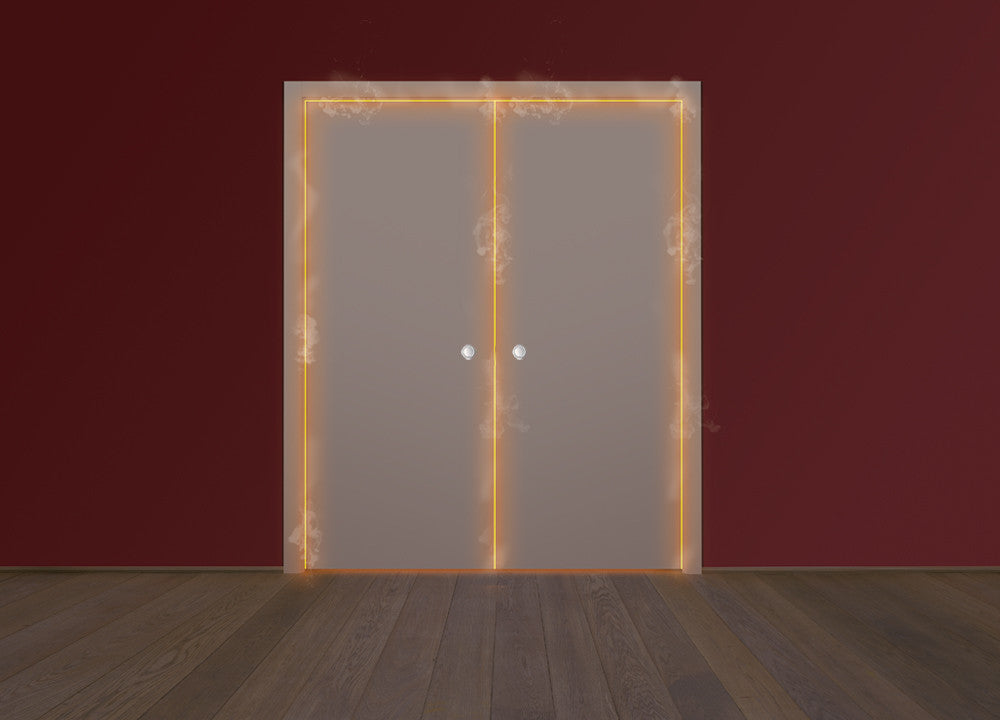

Intumescent strips
Intumescent strips are required to be fitted to the jambs and to the meeting stiles of the doors. All the intumescents required are supplied.
44mm FD30 Door and 12.5mm Type F plasterboard not included.

OPTIONAL ACCESSORIES:

BIAS® soft-close with anti-slam(2 required if chosen);Back of the door self-closer[AUTSAP2] (2 needed if required)

GUARANTEE: 15 year guarantee on the complete Eclisse steel pocket system and runners.

NOTE:

This FD30 Pocket Door System has been fully tested and certified by International Fire Consultants Group Ltd to BS476: Part 22:1987. Field of Application Report no. PAR/10057/01 Revision F.
Important: Install at finished floor level.
Before ordering please refer to the Field of Application Report and your Building Inspector with respect to whether installation of the self-closing mechanism is required for your application. Note: if the self-closing mechanism is required you will need to purchase 2x back of the door self-closers (AUTSAP2).

DOOR PANEL WEIGHT: 100kg
BESPOKE SIZING AVAILABLE?: No
DOOR THICKNESS: 44mm
FINISHED WALL THICKNESS:120mm (frame size 70mm with 2 layers of 12.5mm Type F plasterboard required either side)
SYSTEM TYPE: Certified for use with approved 44mm FD30 door panels- see above (not supplied)
JAMB KIT SUPPLIED?: Yes- the jamb kit with integrated architrave is made from finger jointed oak that is unfinished and paint/stain ready.
DOOR SUPPLIED?: No- you can use a standard UK 44mm door panel size (see Technical Spec)

DOWNLOADS

SIZING CHART & TECHNICAL SPEC:DownloadINSTRUCTIONS:Frame |Connector|Jamb Installation|Self-Closer InstallationCAD DRAWING (.dwg):DownloadNBS SPEC:DownloadBIM:Download
