Eclisse
Syntesis® Flush DOUBLE Pocket Door System - New Sizing
Syntesis® Flush DOUBLE Pocket Door System - New Sizing
FROM: £876.17 GBP (Incl. VAT)
The Eclisse Syntesis® Flush Pocket Door System without jambs or architraves
For a 100mm Finished Wall Thickness
If you wish to order a Finished Wall Thickness of 125mm or 150mm please call 0333 5770828
Please note: If choosing a Bias, Bias DS, Self Close accessory or a handle, please select the 2 x option
Couldn't load pickup availability
Share






- Not sure which size you need? Have a look at this SIZE CHART & TECHNICAL SPEC. View this helpful article on how to size a pocket door. Still have questions? Call our friendly Customer Services Team on 0333 5770828.
- Need a non standard size? Call 0333 5770828 for a quote.
The new and improved system provides even greater ease of installation with the addition of new Eclisse features to further increase stability and provide a professional finish:
- IMPROVED Pocket Horizontals - with micro-perforations (Eclisse Patent) specifically designed to ease the screwing of the plasterboard to the frame structure. Attaching the plasterboard is now even easier and faster.
- NEW Improved Quick-Click Fixing system – Our new, improved ‘Quick-Click’ frame combines quick and easy assembly with increased stability making the frame even stronger!
- NEW Frame details - a special lasered mark on the central vertical allows you to easily identify the centre of the pocket horizontal, making the screwing of the plasterboard sheet to the metal structure even more straightforward.
- NEW Edge Profiles– produce a crisp plaster finish even more easily with new redesigned edge profiles – a great time saver!

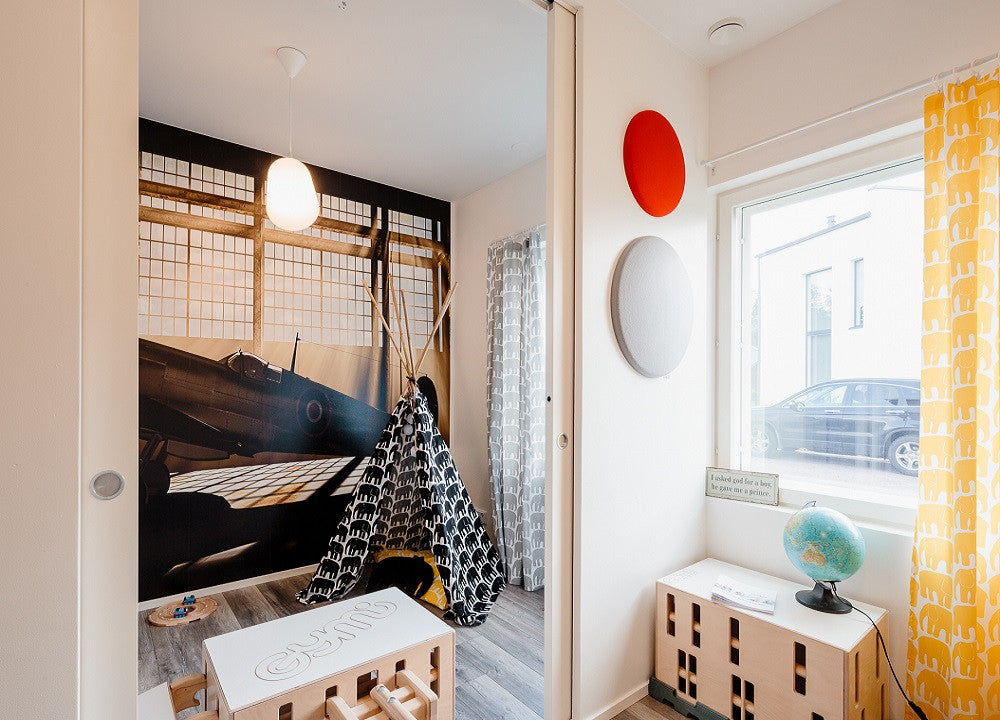

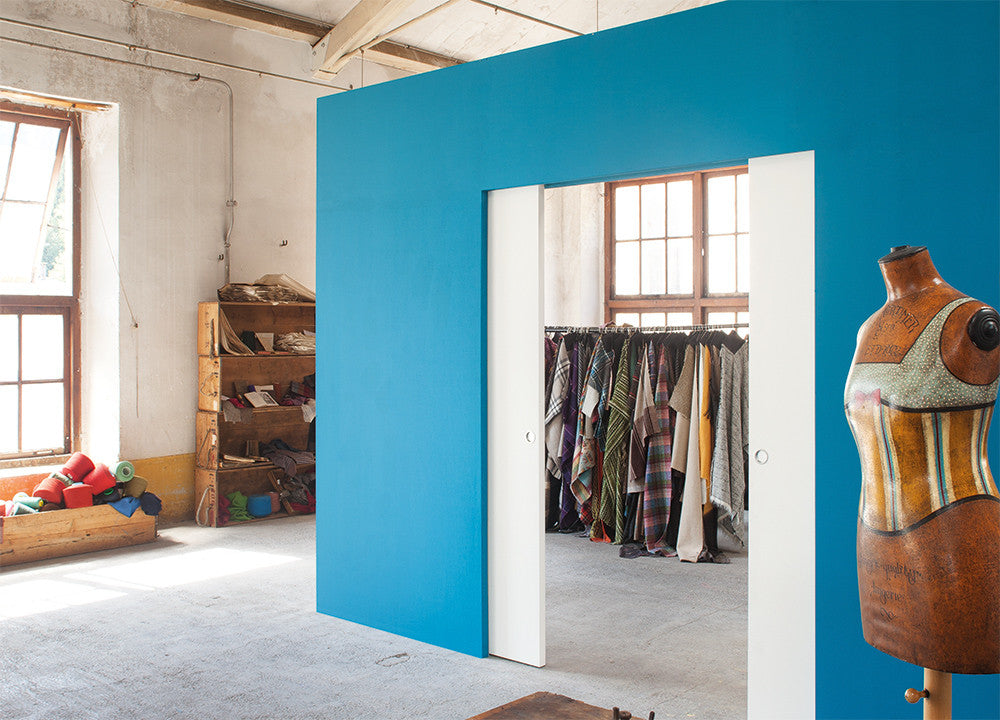

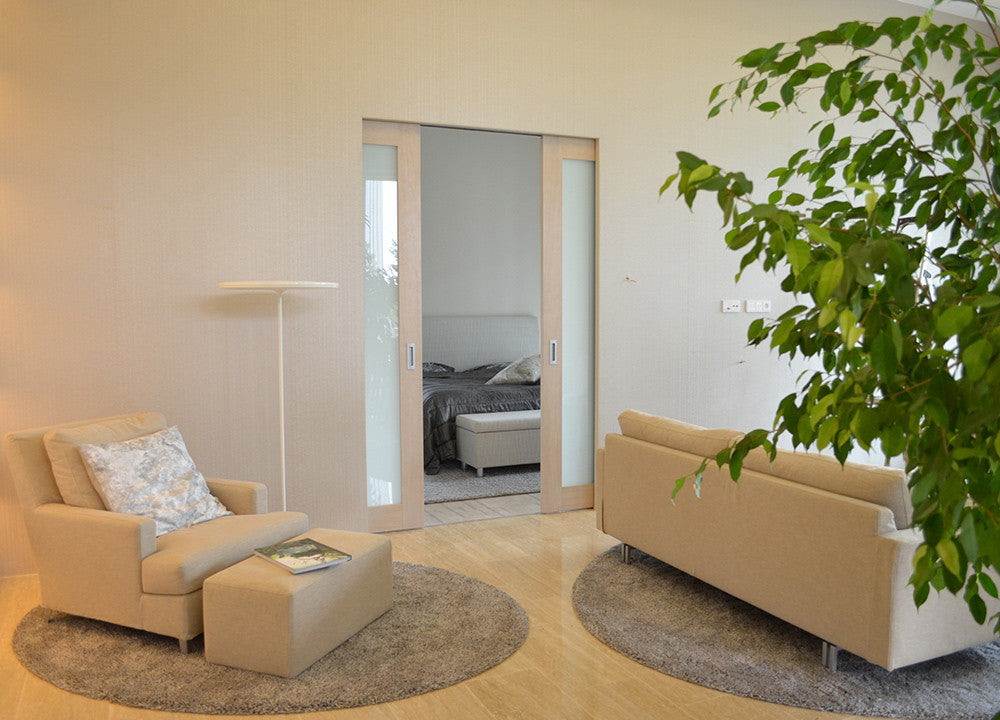

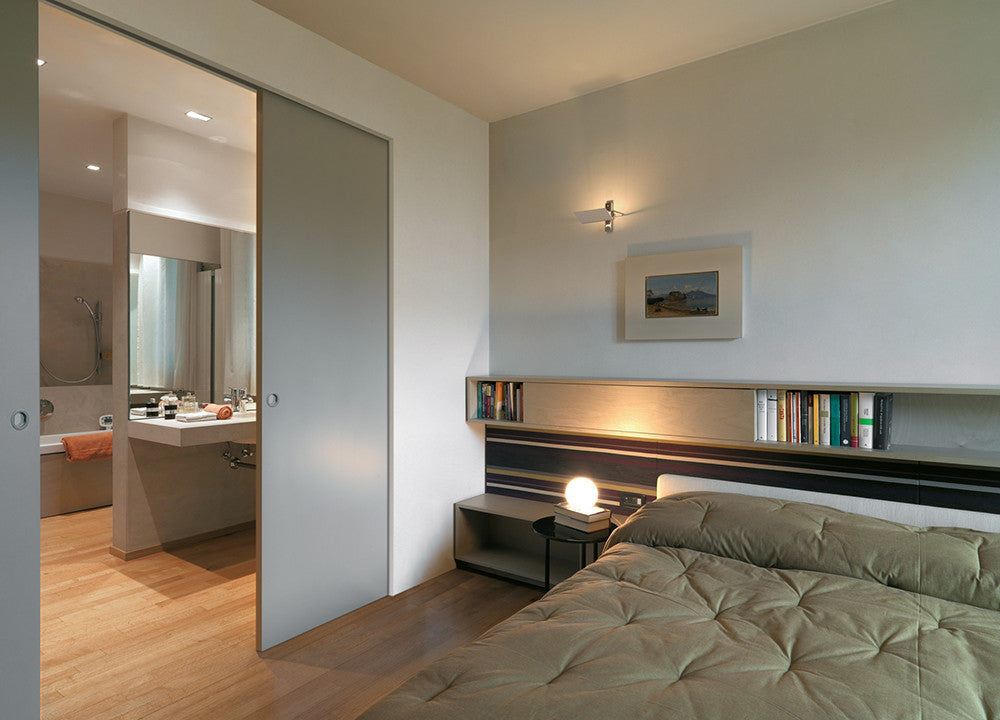

Using the Double Syntesis® Flush Pocket Door System you can create an open plan space with areas that can be closed off when required, creating a layout that is more versatile and multi-functional.
Paint your doors the same colour as the wall and the doors will blend into the background when closed. When you open the doors they will slide into pockets in the wall. Use a contrasting colour and the doors become a feature. The choice is yours.
Note:
- This product page is for the 100mm finished wall thickness system. if you need a 125mm or 150mm please call us on 0333 5770828.
- Standard Delivery 1 - 3 Working Days - £5.99
- Order before 1pm on a weekend for next day delivery (Eligible Postcodes Only) - £9.99
- Dedicated Day Delivery (Eligible Postcodes Only) - £19.99
For deliveries to highlands, Islands and Northern Ireland please call 0333 5770828
- Optional extras include: BIAS® soft-close with anti-slam, BIAS® DS Bi-directional soft-close with anti-slam and Syntesis® Flush Skirting Board Adapter.
- Please note The BIAS DS is not suitable for use with the following sizes of this product 610 + 610x1981 (2' 0"+ 2' 0"x6' 6") and 626+626X2040
Compatible Accessories
- BIAS
- BIAS DS
- Door Edge Finger Pull Lever

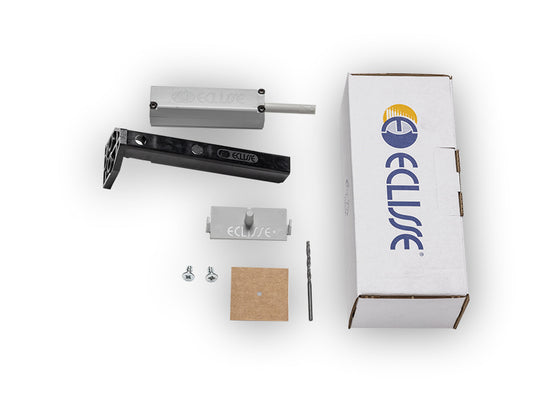

- Touch Latch for Syntesis® Flush pocket door system

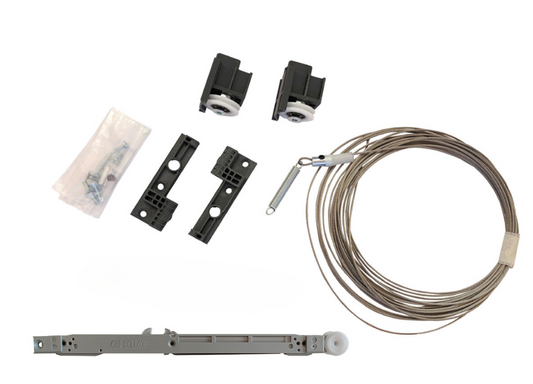

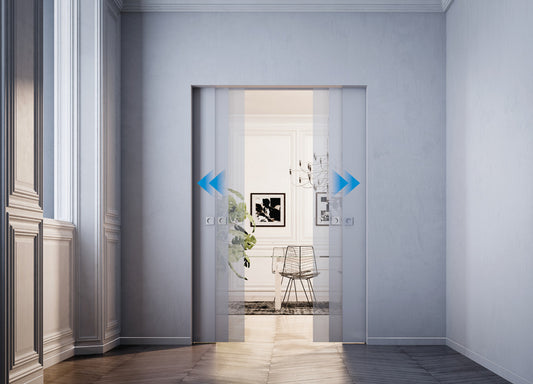

- Eclisse Co-ordination Kit for Syntesis Flush Double Door System
Compatible Handles
- Piano Round Flush Pull Set for Sliding Pocket Door
- Piano Round Bathroom / Privacy Lock Set for Sliding Pocket Door
- AURA Round Flush Pull Handle Set For Sliding Pocket Door
- CASSIOPEIA Round Flush Pull Handle Set For Sliding Pocket Door
- AURA Round Key Lock Set For Sliding Pocket Door - Limited Time Offer
- CASSIOPEIA Round Lock Set For Sliding Pocket Door
- AURA Round Lock Set For Sliding Pocket Door
- Round Flush Pull Handle Set For Sliding Pocket Door - Satin Chrome
- Round Flush Pull Handle Set For Sliding Pocket Door - Painted Black
- Round Bathroom / Privacy Lock Set For Sliding Pocket Door - Satin Chrome
- Round Bathroom / Privacy Lock Set For Sliding Pocket Door - Painted Black
- Square Flush Pull Handle Set For Sliding Pocket Door
- Square Bathroom / Privacy Lock Set For Sliding Pocket Door
- Half Moon Flush Pull Handle Set for Sliding Pocket Door
- Innovative edge profile that allows for a crisp plaster finish right to the edge and into the return for a minimalist architrave free appearance.
- The Syntesis® Flush range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger aluminium profiles and reinforced joints to reduce the risk of plaster cracking to a very minimum.
- Maintanance free track and runners
- Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
- Doors and plasterboard not supplied with system.
- Fully adjustable front and rear doorstop. Rear doorstop can be adjusted without removing the door.
- 15 year guarantee on the complete Eclisse steel pocket system, track and runners
- When fitting flush pull handles we recommend the stop be regulated so the door protrudes from the pocket to avoid risk to fingers. Should the door be adjusted to enter the pocket completely we do not accept any liability.
- TECHNICAL SPEC: Download
- Bespoke sizes available up to passage size 2600mm wide and 3000mm high.
- Suitable for 35 - 44m doors.
- Max door weight 100Kg.
- Finished wall thickness: 100mm, 125mm or 150mm (NB. 125mm and 150mm not available from stock please call us on 0333 5770828 for details)
- 125 and 150m finished wall versions require 2 layers of plasterboard either side.
- Passage sizes above 2000mm wide and 2150mm high must be a 125mm or 150mm finished wall thickness.
- Install at finished floor level.
- INSTALLATION INSTRUCTIONS: 100mm Finished Wall Thickness - Frame |125mm and 150mm Finished Wall Thickness - Frame | Door Installation
- CAD drawing (.dwg): - 100mm FWT | 125mm FWT | 150mm FWT
- NBS Spec: -
- BIM: Download
